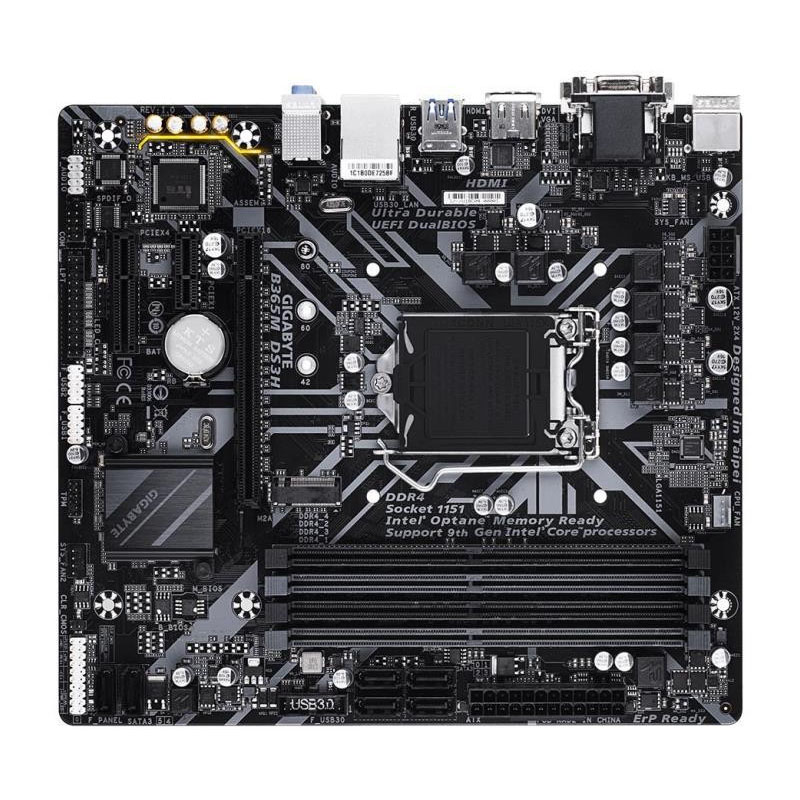

Scheda Madre Gigabyte GA-B365M-DS3H SKT 1151 V2 8th/9th gen. Intel Core MicroATX

COD: SMGBGAB365MDS3H Categorie: ,

73,20

Iva inclusa

Availability: Out of Stock

Esaurito

COD: SMGBGAB365MDS3H Categorie: ,

Descrizione

Scheda Madre Gigabyte GA-B365M-DS3H SKT 1151 V2 8th/9th gen. Intel Core MicroATX

Scheda madre Gigabyte B365M DS3H – Supporto processori Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® – Ram 4x DDR4 2666/2133 Mhz – Dvi, D-Sub (Vga) – 4x Usb3.0 / 2x Usb2.0 – GLan – Audio HD – Micro-ATX

Dettagli

Intel B365 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS™, CEC 2019 ready





Supports 9th and 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4

New Hybrid Digital PWM Design

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface

RGB FUSION supports RGB LED strips in 7 colors

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

CEC 2019 Ready, Save the Power as Easy as One Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Anti-Sulfur Resistors Design

Ultra Durable™ 15KV Surge LAN Protection

Intel® Optane™ Memory Ready

GIGABYTE UEFI DualBIOS™





Processore

Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

La Cache L3 varia da CPU a CPU

(Please refer “CPU Support List” for more information.)

Chipset

Intel® B365 Express Chipset

Memoria

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Architettura di memoria a doppio canale

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Supporta le memorie dotate di Profilo XMP

* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))

Grafica integrata

Integrated Graphics Processor – Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

* Actual support may vary by CPU.

Audio

Realtek® ALC887 codec

Audio ad alta definizione

2/4/5.1/7.1-channel



* Per configurare l’ audio 7.1 devi usare un modulo frontale HD e abilitare il Multi Channel Audio dal pannello di controllo dei tuoi driver

Supporta uscite S/PDIF

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Slot di Espansione

1 x Slot PCI Express x16, funzionante a x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x PCI Express x4 slot

Interfaccia di storage

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB

Chipset:

6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Connettori Interni I/O

1 x 24-pin ATX main power connector

1 Connettore di Alimentazione ATX ad 8-pin

1 Connettore per Ventola della CPU

2 x sistema di ventilazione

1 x RGB LED strip header

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

La funzione TPM è opzionale in base alla regolamentazione dei vari stati

1 Porta seriale

1 x parallel port header

1 x Clear CMOS jumper

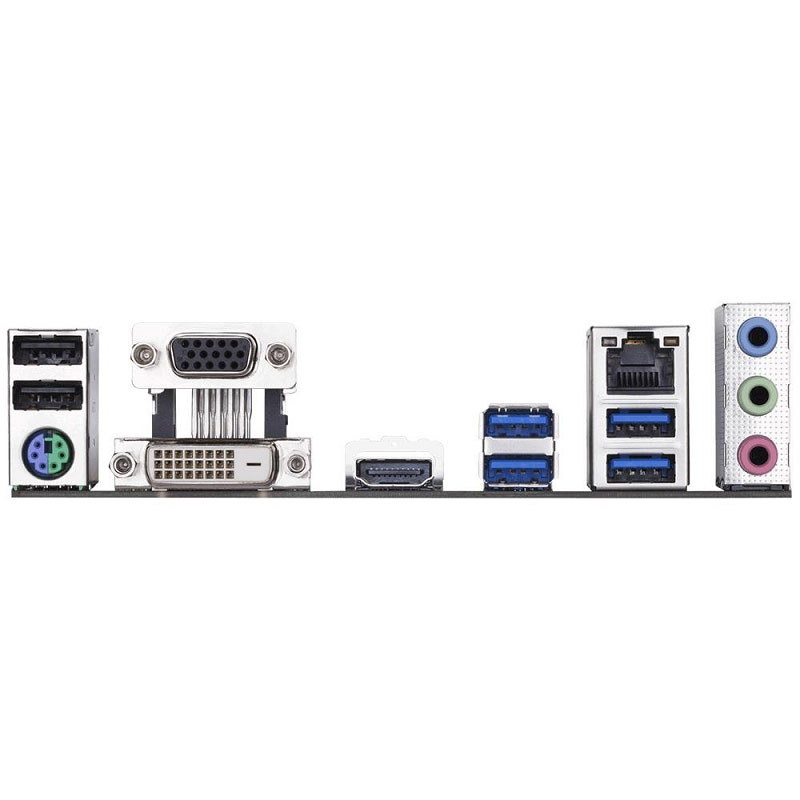

Pannello Posteriore I/O

1 Connessione per Mouse e Tastiera PS/2

1 x Porta D-Sub

1 x Porta DVI-D

1 Porta HDMI

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 Porta RJ-45

3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Monitoraggio H/W

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Altre Caratteristiche

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@ BIOS ™

Auto Green

Support for Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

Supporto alla tecnologia ON/OFF Charge

Platform Power Management

RGB Fusion

Smart Backup

Smart Keyboard

Smart TimeLock

Smart HUD

Smart Survey

System Information Viewer

USB Blocker

Supporta il Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

Sistema Operativo

Support for Windows 10 64-bit

Caratteristiche Fisiche

Micro ATX Form Factor; 22.6cm x 20.5cm

Note

A causa delle diverse condizioni di supporto per Linux fornito da fornitori di chipset, scaricare il driver Linux dal sito web fornitori di chipset.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Ulteriori informazioni

Marca: Gigabyte

Socket CPU: LGA1151

Famiglia processore: Intel

Dimensione: MicroATX

Condizione: Nuovo

Informazioni aggiuntive

Peso 2 kg
